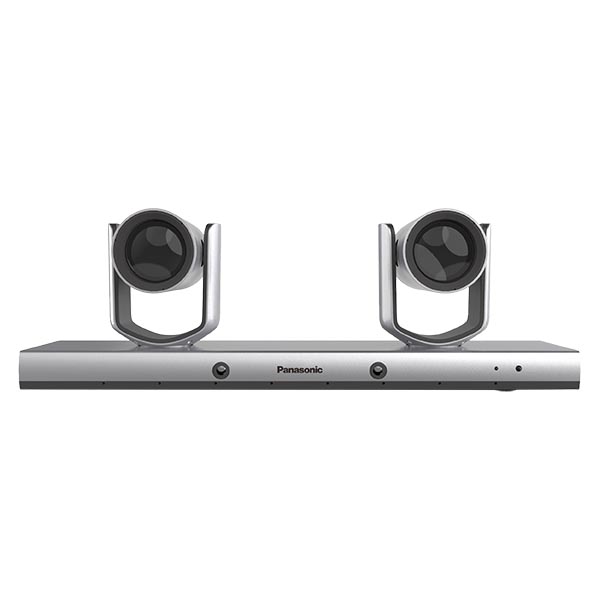

KX-VD300SX
Implemented with both audio positioning, body detection and recognition technologies.
Auto switch between close-up image and wide-angle image for whole meeting.
Built-in seamless switch between various scenes.
Support HDMI, USB2.0, 3G-SDI & network interface, up to 1080P60 resolution.
Support H.264/H. 265/MJPEG video compression.
Tracking camera:1/2.8” Exmore CMOS, 2.14MP, 12X optical zoom, up to horizontal 72.5° FOV.
KX-VD300SX
Description
Model Name
KX-VD300SX
| Tracking Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Signal Format (SDI) | 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50 | ||||||||||
| Focal | f=3.9mm-46.8mm | ||||||||||
| Iris | F1.6-F2.8 | ||||||||||
| Zoom | Optical:12X, Digital:12X | ||||||||||
| FOV | Horizontal72.5°-6.3° | ||||||||||
| Focus | Auto, Manual, PTZPush, One Push, Manual, Color Temp | ||||||||||
| Shutter Speed | 1/1~1/10,000s | ||||||||||
| AGC | Auto, Manual | ||||||||||
| White Balance | Auto | ||||||||||
| Exposure | Auto | ||||||||||
| SN Ratio | ≥ 50dB | ||||||||||
| BLC | Yes | ||||||||||
| Full View Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8”CMOS,2.14MP | ||||||||||
| Lens | Manual focus | ||||||||||
| Focal | 2.4mm | ||||||||||
| FOV | Horizontal88°,Vertical52 | ||||||||||
| PTZ | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pan | -90°~+90°,0.2°~100°/s | ||||||||||
| Tilt | -30°~+90°,0.2°~100°/s | ||||||||||
| Control Interface | RS-232 | ||||||||||
| Preset Number | 64 | ||||||||||
| Network | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Image Size | 1920×1080@60fps | ||||||||||
| Video Compression | H.264/H.265 | ||||||||||
| Audio Compression | AAC | ||||||||||
| Protocol | RTSP, RTMP, RTP, TCP, UDP, ONVIF | ||||||||||
| Dual Stream | Yes | ||||||||||
| Interface | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Video Output | 1×HDMI,1×3G-SDI | ||||||||||
| Audio Input | 2×3.5mm Line IN, one way for the echo eli mination reference audio input | ||||||||||
| Network Interface | 100MRJ45 | ||||||||||
| USB Interface | 1×USB2.0 (Reserved) | ||||||||||
| Control Interface | 1×RS-232 | ||||||||||
| General | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Control Protocol | VISCA | ||||||||||
| Address | 44348 | ||||||||||
| Power Supply | DC12V | ||||||||||
| Power Consumption | <24W | ||||||||||
| Working Temperature | 0°C~+40°C | ||||||||||
| Storage Temperature | -20°C~+60°C | ||||||||||
| Dimension（ L×W×H ） | 500mm×137mm×164mm Weight | ||||||||||
| Weight | 3.38KG | ||||||||||
