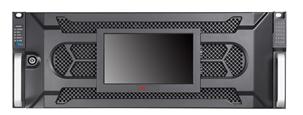

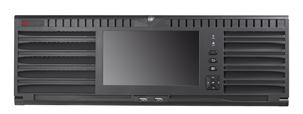

DS-96128/256NI-I16(-I24)


New Super 4K NVR

• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Video outputs at up to 4K (4096*2160) resolution

•Supports decoding up to 20 channels at 1080P resolution

• Up to 128/256 IP cameras can be connected with
512M/768M incoming bandwidth
• Up to 24 SATA interfaces

• Supports H.264+,H.264,MPEG4,H.265,MJPEG video format

• Support redundant power supply to improve the system
stability
• Support HDD hot swap with RAID0,1,5,6,10 storage
scheme configurable

•Support various VCA detection alarm and VCA search

Description

Video/Audio Input
IP video input:    |    128-ch
Two-way audio input:    |    1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:576Mbps
Outgoing bandwidth:512Mbps
Remote connection:256

Video/Audio Output
HDMI Output:2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (2.0Vp-p, 1KΩ)
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Live view / Playback:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:20+48 ch @1080P

Hard Disk
SATA:16 SATA interfaces for 16 HDDs
miniSAS (Optional):2 miniSAS interface
eSATA:1 eSATA interface
Capacity:Up to 8TB capacity for each HDD

Disk array
Array type:RAID0, RAID1, RAID5, RAID6, RAID10
Number of array:8

External Interface
Optic fiber interface:4 1000 Mbps optional optic fiber interfaces
Network Interface:4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial Interface:RS-232, RS-485, Keyboard
USB Interface:Front panel: 2 × USB 2.0
Rear panel: 2 × USB 3.0
Alarm In:16-ch
Alarm Out:    4-ch

General
Power Supply:100-240 VAC, 550W
Consumption(without hard disk and POE):≤ 140W
Working Temperature:0 ºC ~ +50 ºC (32ºF ~ 122ºF)
Working Humidity:10 % ~ 90 %
Chassis:3U chassis
Dimensions:442 × 494 146 mm (17.4 × 19.4 5.7 inch)
Weight(without HDD):≤16kg (35.3lb)
