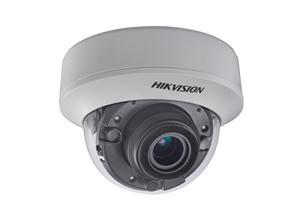

DS-2CE56F7T-(A)ITZ
3MP WDR Indoor Motorized VF EXIR Dome Camera
• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution

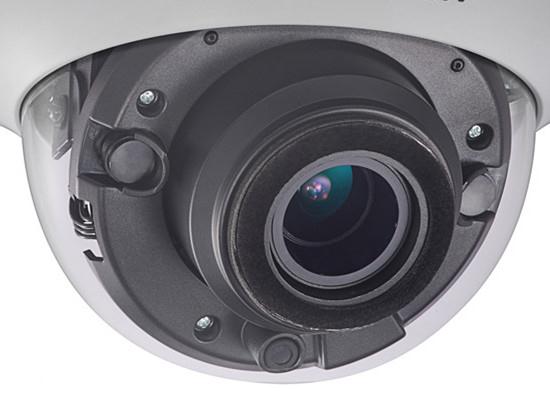

• 2.8-12mm motorized vari-focal lens
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 30m IR distance
• Up the Coax(HIKVISION-C)
Camera
Image Sensor:3MP CMOS Image Sensor
Signal System:PAL/NTSC
Effective Pixels:2052(H)*1536(V)
Min. Illumination:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:1/25(1/30) s to 1/50,000 s
Lens:Motorized VF lens; 2.8 – 12 mm
Angel of view: 26.8°-83°
Lens Mount:φ14
Adjustment Range:Pan: 0 – 355°, Tilt: 0 – 75°, Rotation: 0 – 355°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120dB
Video Frame Rate:1920 ×1536@18fps
HD Video Output:1 Analog HD output
Synchronization:Internal Synchronization
S/N Ratio:More than 62 dB
Up the Coax:Support
Menu
Auto White Balance:Auto/MWB
BLC:Support
AGC:Support
Language: English/Chinese
Function:Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR
General
Operating Conditions:-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:12 VDC±15%
-A: 12 VDC±15%, 24 VAC±15%
Power Consumption:Max. 4.5W -A: Max. 6.5W
IR Range:Up to 30m
Communication :Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension:φ136 × 102 mm (φ5.35” × 4.02”)
Weight:600 g
