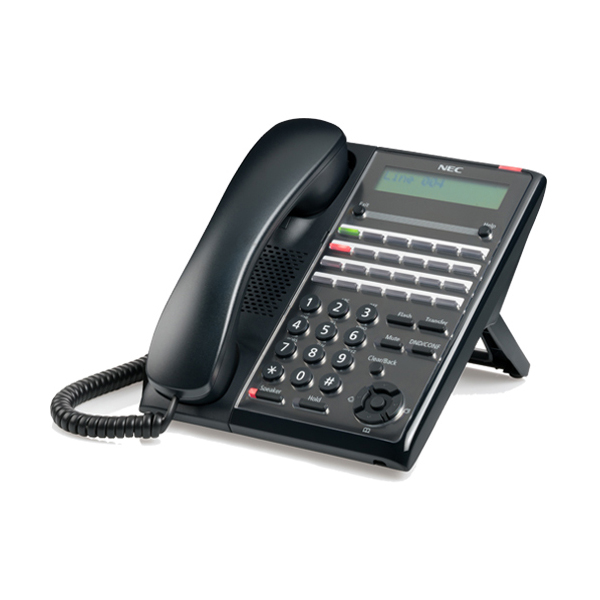

24 button terminal
Features:
- Color: Black
- Connected to: Digital Extension Port (2-wire)
- Programmable keys: 24
- LCD: 24 digits x 3 lines
- Soft Keys: 4
- Handsfree: Full-duplex
- Headset port: Yes
- Angle Adjustment: 2-steps
- Wall-Mounting kit: Built-in
- EHS Support: by WHA (Optional)
- PC Port: No
Accessories:
- 60-button DSS-B console
- Wireless Headset Adapter (WHA)
Description
SL2100 System Comparison table
| Number of Chassis | 1 Chassis | 2 Chassis | 3 Chassis | |
|---|---|---|---|---|
| Number of Universal Slot | 4 | 8 | 12 | |
| Number of CPU | 1 | |||
| Total System Ports (Trunk + Extension) | 222 | |||
| Total Legacy Ports (Trunk + Extension) | 74 | 148 | 222 | |
| Trunks (Max.) | 42 | 84 | 126 | |
| – Analog | 12 | 24 | 36 | |
| – ISDN BRI | 16 | 32 | 636 | |
| – ISDN PRI (2M) | 30 | 60 | 90 | |
| Extensions (Max.) | 74 | 112 | 112 | |
| – Multi-line Terminals | 24 | 48 | 72 | |
| – Analog Extensions | 32 | 64 | 96 | |
| – DSS Console | 3 | 6 | 9 | |
| – Doorphone | 6 | |||
| IP | IP Trunks (SIP / H.323) | 64 | ||
| IP Extensions | 112 | |||
| Audio / Others | Relay | 11 | ||
| Paging | 3 | |||
| External Music on Hold | 1 | |||
| BGM | 1 | |||
| Ethernet Port | 1 | |||
| Analog Modem | 1 | |||
| Voice Response System/ Voice Mail (VRS/VM) |
VRS/VM Storage | 2 Hours (Built-in) / 15 Hours (By Small SD card) / 120 Hours (By Large SD card) |
||
| Voice Prompts for VRS/VM | 1 Language (Built-in) / 26 Languages (By Small or Large SD card) |
|||
| VoIP | Built-In VoIP Channel | 8 (Built-in) / 128 (By VoIP board) | ||
| Physical Characteristics | SL2100 Chassis Dimensions | H 92.9mm X W 435mm X D 330mm | ||
| Empty Chassis Weight | 2.2 Kg | |||
| Power Consumption | SL2100 Chassis Power Rating | Input 100V-120V/220V/230V/240V 50/60Hz 1.43A 1.25A/0.82A/0.79A/0.76A OR DC-24V 2.86A |
||
| Compliance | EMC | EN55032 Emission, EN55024 Immunity, EN6100 Powering |
||
| Safety | EN60950-1 | |||
| Transmission and Signaling | TBR3, TBR4, ES203-021, TBR8, TBR38 | |||
| Environment | Temperature | 0°C~40°C (32F-104F) | ||
| Humidity | 10%~90% (non-condensing) | |||
