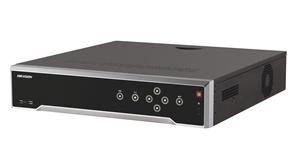

DS-7716/7732NI-K4


Embedded 4K NVR

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)

resolution

• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Support dual-os to ensure high reliablility of system

running

•Support various VCA detection alarm and VCA search

•Support H.265/H.264/MPEG4 video formats

Description

Video/Audio Input
IP video input:32-ch
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)

Network
Incoming bandwidth:256Mbps
Outgoing bandwidth:160Mbps
Remote connection:128

Video/Audio Output
HDMI Output:1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:16-ch
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding
Live view / Playback:8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:8-ch@1080P

Hard Disk
SATA:4 SATA interfaces for 4HDDs
Capacity:Up to 6TB capacity for each HDD

External Interface
Network Interface:2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface:RS-232; RS-485;
USB Interface:Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In:16-ch
Alarm Out:    4-ch

General
Power Supply:100 to 240 VAC
Consumption(without hard disk and POE):    ≤20 W
Working Temperature:-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:10 % ~ 90 %
Chassis:19-inch rack-mounted 1.5U chassis
Dimensions:445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″)
Weight(without HDD):≤ 5 Kg (11 lb)
