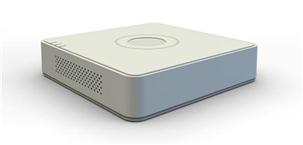

DS-7104/7108/7116HGHI-F1


Turbo HD DVR

• H.264 /H.264+& Dual-stream video compression

• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to 1080P lite resolution

• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support  4/8/16-ch synchronous playback at 720P resolution

Description

Video/Audio Input
Audio Input:1-ch
Video Compression:H.264,H.264+
Analog and HD-TVI video input:16-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:Support HDTVI input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
Audio Compression:G.711u
Audio Input Interface:RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
HDMI/VGA Output:1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate:32 Kbps ~ 4 Mbps
Stream Type:Video/Video&Audio
Audio Output:1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:64kbps
Dual Stream:Support
Playback Resolution:1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:16-ch

Network management
Remote connections:    128
Network protocols:TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
