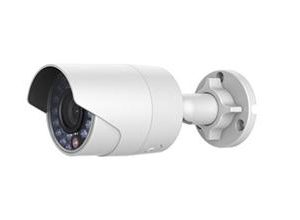

DS-2CD2022WD-I


2MP IR Bullet Network Camera

l   Up to 2 megapixel high resolution

l   Full HD1080p video

l   Dual stream

l   4mm/6mm fixed lens

l   120dB Wide Dynamic Range

l   3D Digital Noise Reduction

l   Backlight Compensation

l   DC12V & PoE

l   Support H.264+

l   Up to 30m IR range

l   3-axis adjustment

l   IP67 weather-proof protection

l   Metallic housing & bracket

Description

Camera
Image Sensor:1/2.8″ Progressive Scan CMOS
Min. Illumination:0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Lens:4mm, 6mm @ F2.0, Angle of view: 90°(4mm) , 53.9°(6mm)
Lens Mount:M12
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR

Compression Standard
Video Compression:H.264/MJPEG/H.264+
H.264 code profile:Main Profile
Video bit rate:32Kbps~16Mbps
Dual Stream:Yes

Max. Image Resolution:1920 x 1080
Frame Rate:50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:Yes, zone configurable
ROI:Support

Network
Network Storage:NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:    TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility:ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface

General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:Max. 5W
Weather Proof:IP67
IR Range:    Up to 30m
Dimensions:70×154.2×60.5 mm (2.8” × 6.2” × 2.4”)
Weight:500g (1.1lbs)
